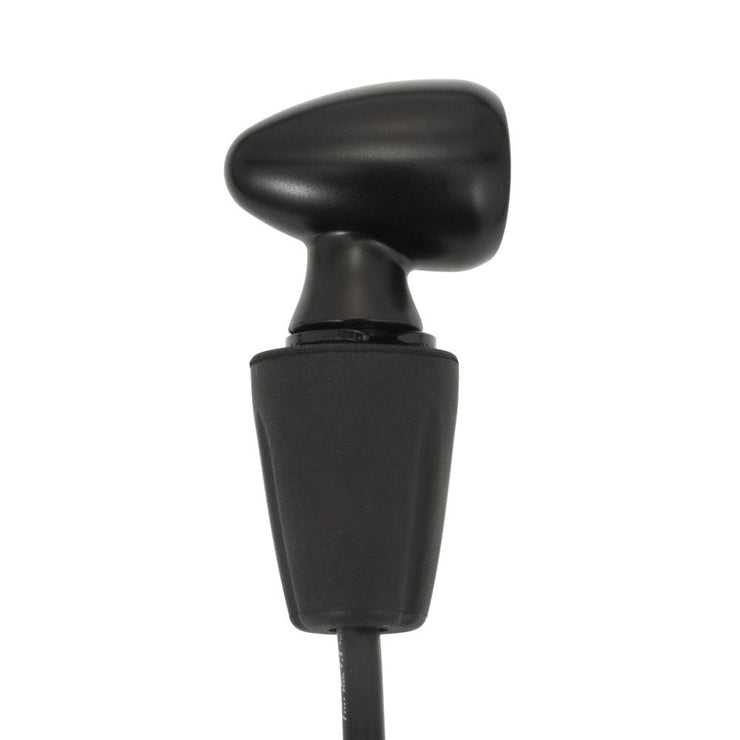

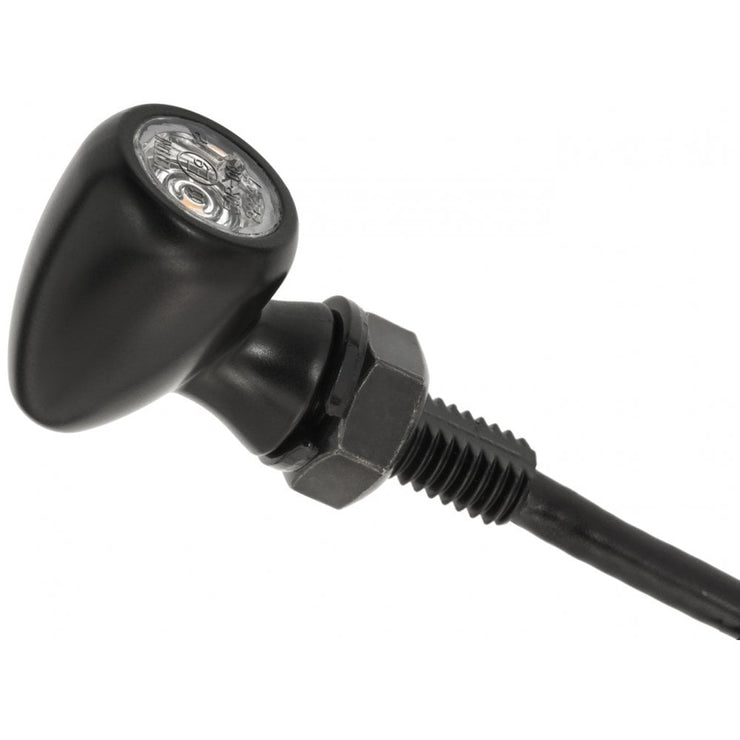

MOTONE PICO LED 3-IN-1 BRAKE LIGHT/TAILLIGHT/INDICATOR TURN SIGNALS - PAIR - BLACK - M8
MOTONE PICO LED 3-IN-1 BRAKE LIGHT/TAILLIGHT/INDICATOR TURN SIGNALS - PAIR - BLACK - M8
MOTONE PICO LED 3-IN-1 BRAKE LIGHT/TAILLIGHT/INDICATOR TURN SIGNALS - PAIR - BLACK - M8

MOTONE PICO LED 3-IN-1 BRAKE LIGHT/TAILLIGHT/INDICATOR TURN SIGNALS - PAIR - BLACK - M8

Regular price $259.99 Save $-259.99
1 in stock
MOTONE PICOMULTI LED 3in1 :
  1. TURN SIGNAL (INDICATORS)
  2. BRAKE LIGHT
  3. RUNNING LIGHT (TAIL LIGHT)

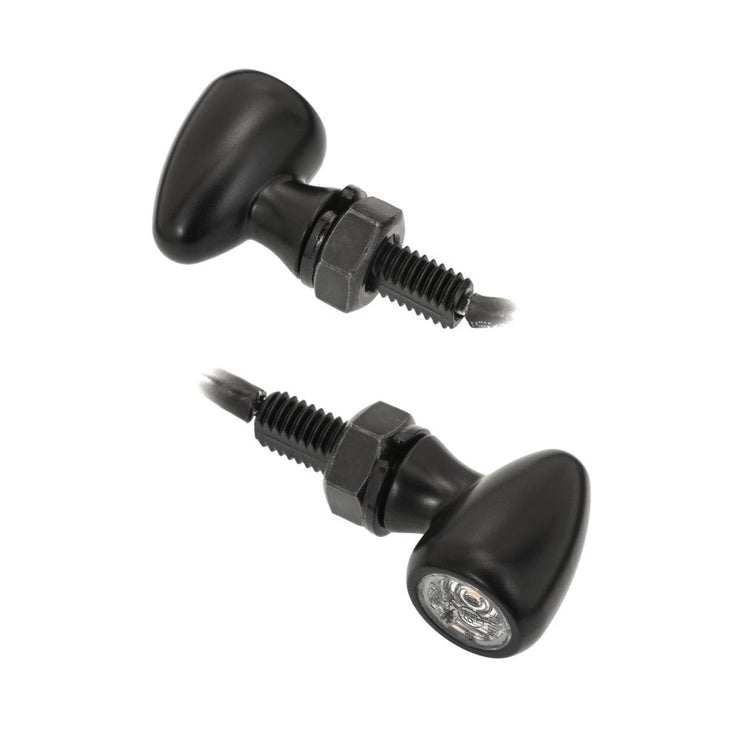

SOLD HERE: PAIR [2 LIGHTS]
  • ECE R148 - LAB TESTED FULLY COMPLIANT ROAD LEGAL
  • CUSTOM PCB
  • FULL METAL JACKET - ALUMINIUM HOUSING
  • ORSAM SMD LED
  • BRAIDED CABLES TERMINATING IN 3.9MM BULLET CONNECTORS
  • WATERPROOF
  • RUBBER BOOT CABLE TIDY
  • INPUT: DC 12v
SPECS
  • Indicator Light Power: 1.2W
  • Running Light Power: 0.5W
  • Brake Light Power: 1.2W
  • Indicator Brightness: 77 Cd
  • Running Light Brightness: 9 Cd
  • Brake Light Brightness: 50 cd
  • PMMA LENS (TIR Optical Lense tech)
  • SIZE W 18 x H 44 x D 25.5 mm
  • MOUNTED ONTO A M8 THREAD
There are 4 Wires exiting each Light Unit - Functionality is as follows:
  • RED - BRAKE LIGHT
  • YELLOW - INDICATOR
  • BROWN - RUNNING LIGHT
  • BLACK - EARTH NEUTRAL

Combine with various Motone brackets and adapters to fit anywhere on your bike:

  • Brackets for front of bike:
    • Billet Adapter Brackets mount M8 Indicators such as the PICO direct to stock Triumph Indicator position (2016 and up bikes)
    • Clampit Brackets to mount to front fork 41mm (other sizes also coming)
    • Boomerang Bracket - fits on the bottom yoke suitable for the Street Twin/Speed Twin 900
  • Brackets for rear of bike:
    • V2 Shock Mount Brackets to mount to rear shock
    • Under Seat Brackets LC Triumph - Use the bolt holes under the rear of the seat to fit Indicators towards rear of frame - Liquid Cooled Bonneville so 2016 to 2025+)
    • Under Seat Brackets AC Triumph - Under seat brackets for the aircooled (2001-2015) Bonnevilles
    • Triline Brackets to mount to Rear Shock
    • Ajax - Designed specifically for the Triumph Bobber these brackets allow you to fit signals onto the rear of the bike using the airbox bolts
    • Number Plate Brackets - Adapter Brackets that allow the lights to be fit direct to your rear number plate bracket without needing to drill any holes etc

Wiring Adapters

  • Please note if you have one of our tail tidies or rear loom adapters they would already terminate in a 3.9mm Bullet so plug and play from there on
  • Each Light Unit has 4 Wires that terminate in a standard Japanese spec 3.9mm Bullet - The Red wire is the Brake Light, the Yellow wire is the Running Light, the Brown Wire is the Indicator Light and the Black is the Earth/Neutral
  • We have a Wiring Loom adapter for the Triumph Bobber / Scrambler 1200 that can be run directly with these MULTI 3in1 Indicators available here part code DDM016

MC PART ID: MFX004
